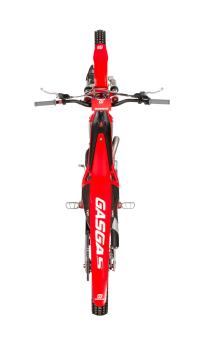

TXT RACING 300 2024
Our headlining trial bike has the best of everything! Class leading
power, top-level handling, and a serious amount of torque! Put simply,
our TXT RACING 300 is a trial workhorse! With a plentiful supply of
strong, clean, and tractable power on tap, all skillful riders can push
their limits and enjoy unlimited possibilities. Not for the faint
hearted, the 300cc 2-stroke is built to scale the hardest climbs and
meet the toughest challenges head-on. With impressive maneuverability,
low running costs, leading suspension, a strong and reliable gearbox for
precise shifting, as well as a hydraulic clutch and brakes from
BRAKTEC, the TXT RACING 300 truly does deliver serious trial
Restyled and red, red, red! What’s really cool about our new graphics is
that they’re embedded into the bodywork making them super durable. The
fresh look is applied onto our slim, ergonomic plastics, which ensures
unrestricted movements and allows riders to perform at their very best.
As all trial riders hit the deck from time to time, all bodywork is made
from a special blend of Polypropylene, which is super flexible and
returns to its normal shape after impact, even if bent 180 degrees or
There aren’t many bikes that have an airbox with a such a clever design, but ours do! Not only does it house the top-quality Twin Air filter, but the overall structure also plays a vital role in allowing our trial bikes to be super slim. With easy access to the airbox, filter changes are made quick and easy with just one bolt safely securing the filter in place.
HANDLEBAR & GRIPS
Strong, lightweight, and tapered Neken handlebars are fitted with Renthal grips for the best in both strength and comfort. With the bars clamped into the handlebar clamps made of forged aluminum the entire front-end of the TXT Racing range is super stable with a familiar feel for a confidence boosting ride, time after time. This provides improved stiffness and better feedback to the rider plus we increased protection by adding a bar pad.
Redesigned for enhanced ergonomics while fitting seamlessly within the frame and bodywork, the compact 2.4-litre fuel tank is held in place with just one bolt, ensuring fast removal and quick re-installation.
Strong, but with just the right amount of flex. That’s how we build our
trial frames, using tubular, 1.5mm 25CrMo4 chrome-moly steel for
exceptional levels of rider feedback! Using advanced manufacturing
processes, each one is crafted with laser cutting and robot welding. The
end result is frames that are incredibly durable and ensure true trial
performance. Weighing just 6kg, all frames are complete with a robust
GASGAS-red powder coating. Lateral hangers made of forged aluminium
connect the steering head zone while a new, larger skid plate provides
better protection for the engine, lower frame rails, and linkage.
CNC MACHINED TRIPLE CLAMPS
Super cool and guaranteed to ensure front-end stability! Our silver anodized CNC machined triple clamps not only look the business, but they’re incredibly lightweight and play a huge role in delivering precise handling.
Smooth and progressive for the very best handling, the 39mm low-friction front forks improve the bikes overall agility. To prevent unwanted bottoming, an adjustable spring and End Stroke adjustment can be found inside the left leg, while rebound can be fine-tuned on the right-side fork leg. Connecting the forks and ensuring positive rider feedback from the front wheel is a lightweight, 160-gram aluminum axle.
Making sure our TXT Racing line-up retains its best-in-class performance across all classes and displacements, a TECH shock is fitted. Delivering the highest levels of comfort and, most importantly, amazing rear wheel traction, with its adjustable rebound damping all riders are able to dial in the shock to suit their riding style and ability.
Slim, lightweight, and super-strong! Cast from a single piece of aluminum, the swingarms fitted to the entire TXT RACING range are manufactured with proven rigidity and optimal flex, to soak up the biggest of rear wheel hits with ease.
To improve comfort on the bike, the foot pegs have been fully redesigned with an increased surface area closer to the frame. This unique design includes a new fixing bolt hidden inside the frame and allows riders to grip the bike more effectively for considerably enhanced control when compared to previous models. The same tried and tested special micro-casting process is retained for continued low weight and maximum grip.
Powerful, light, and compact. The TXT RACING 300 motor is without doubt
the most competitive in its class. Our engineers have never stopped
developing the 300cc 2-stroke motor, squeezing out more and more
user-friendly performance while ensuring maintenance costs remain low.
Sharing much of the same architecture as the smaller capacity GASGAS
trial bikes, the motor not only gives riders tons of smooth power, but
the overall design also aids handling.
Ensuring the motor fitted inside the TXT RACING 300 fires to produce the strongest possible power, the cylinder head features a specific internal profile that ensures a clean burn of the fuel/air mixture for a quick and precise throttle action.
CYLINDER AND PISTON
Big power, excellent torque and class-leading performance comes from a specially developed 79mm piston on our TXT RACING 300. And a cylinder that has specifically designed intake and exhaust ports to ensure the perfect flow of air/fuel mixture.
Giving our 2-stroke motors all the fuel they need for a wide spread of smooth, strong power is the Keihin PWK 28mm carburetor.
The lightest gearbox in any trial bike on the market and another patented GASGAS part! The 4/6 system allows riders to select from 6 gears when there are only 4 gears on the internal transmission shaft. Ensuring all TXT RACING bikes are technologically advanced, the gearbox reduces weight and allow for super compact crankcases.
We work hard to ensure the crankshaft on the TXT RACING 300 runs as freely as possible, like we do on all of our trial bikes. Ideally balanced for incredibly smooth, vibration free motor performance, it deliver the 60mm stroke via a high-performance aluminum connecting rod with a closed main bearing by SKF for peace of mind and long-lasting durability.
The TXT RACING 300 delivers serious performance from an ultra-compact motor. Something only possible because of the super-small crankcases. Manufactured using a high-pressure die-cast process, they’re lightweight while also being incredibly strong. They also hold all internal motor parts close to the bike’s center of gravity for awesome handling.
A stainless-steel front pipe and rear silencer maximize the power and torque from our compact 2-stroke motors! Both components are low in weight for uncompromised handling yet high in strength for incredible durability. Our engineers also worked on a compact silencer endcap, which reduces the risk of potential damage. What we didn’t change is the well-known and loved easy-access design, which allows super quick and simple silencer packing changes, as and when needed.
Release all the torque and power you need with just one finger thanks to our super light BRAKTEC hydraulic clutch! Reliable and designed to ensure even wear, it delivers smooth operation and exceptional performance at all times. Consisting of three Kevlar friction plates, two steel plates, and a Belleville spring design, hours and hours of maintenance free riding is guaranteed. A stronger clutch cover prevents damage from rocks and boot wear while a smoother profile lever provides a more comfortable feel.
A reworked kickstarter guarantees improved strength and reliability while the reworked shape of the starter finds an optimal final stop on the footpeg.
For complete control, trial specific BRAKTEC brakes are fitted with the monoblock 4-piston caliper and 185mm NG waved front disk delivering unrivalled performance and accurate braking in all conditions. Together with a 2-piston caliper and a 150mm NG waved disk at the rear, the overall stopping power on the TXT Racing range is next level. A smoother profile front brake lever also offers a more comfortable feel.
FAN AND RADIATORS
The seriously clever integrated cooling system on our TXT Racing trial bikes is further improved for 2023 with a redesigned fan that increases air flow and reduces sound. And with the radiator neatly tucked away between the new aluminum engine mounts, the whole system is well protected from crash damage for continued 2-stroke performance.
They’re built to last. Strength and reliability combine to create high performing wheels that will stand the test of time. With a CNC machined hub connected to the cool, black anodized aluminum rims from MORAD with lightweight spokes, this wheelset is capable of soaking up the hardest of hits. Up front, the aluminum axle is low in weight, high in strength, and plays a huge part in ensuring the front-end has a lightweight feeling.
Michelin’s super-light X11 tires connect all our TXT RACING bikes to the rocks, mud, and obstacles beneath them. The best in the business, they feature super-pliable knobbles, which together with low pressures offer exceptional grip.
IGNITION AND ELECTRICAL SYSTEM
HIDRIA ignitions generate stronger power, which stabilizes idling and creates a cleaner response from the bottom end. Depending on your riding style and weather conditions, the handlebar mounted map switch allows for a choice of two ignition curves, which can be selected for tailored power in every section.
