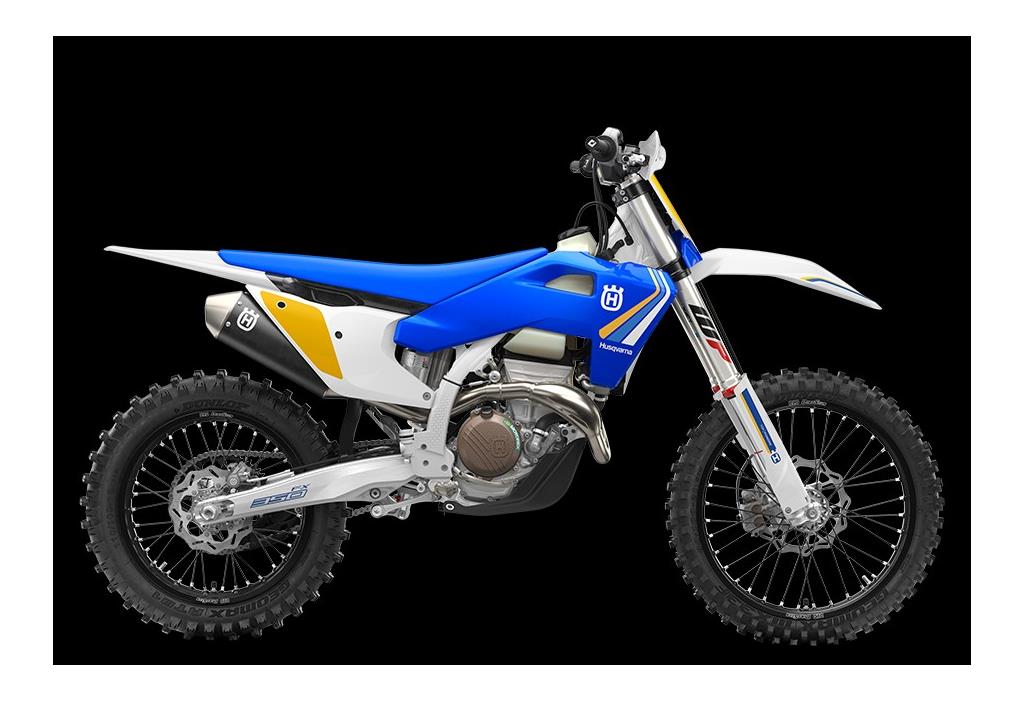

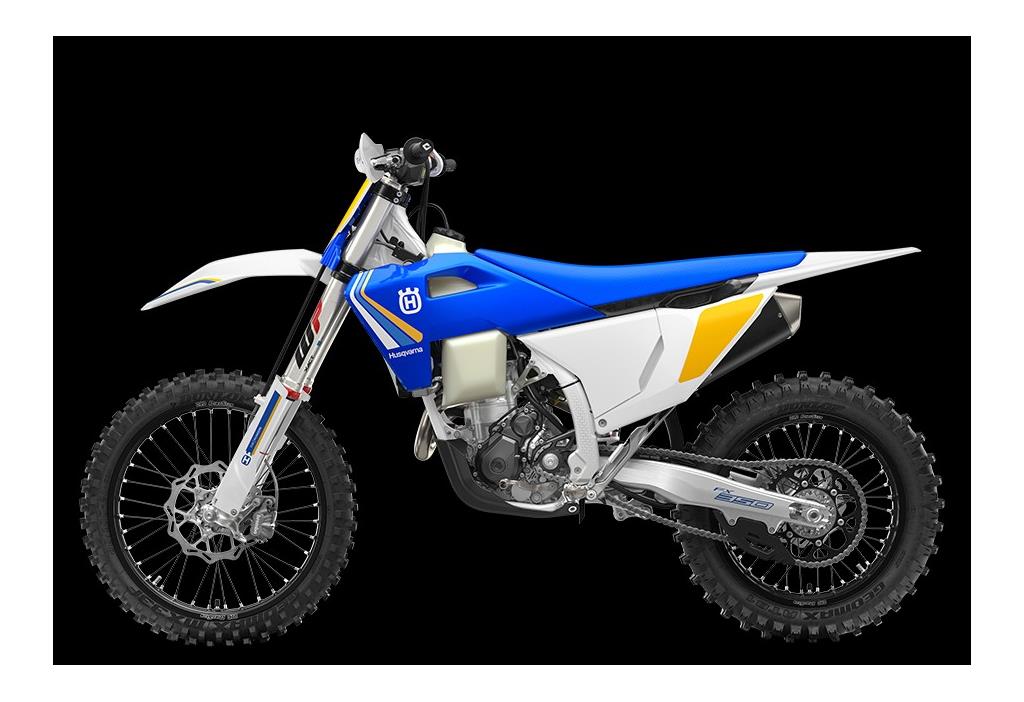

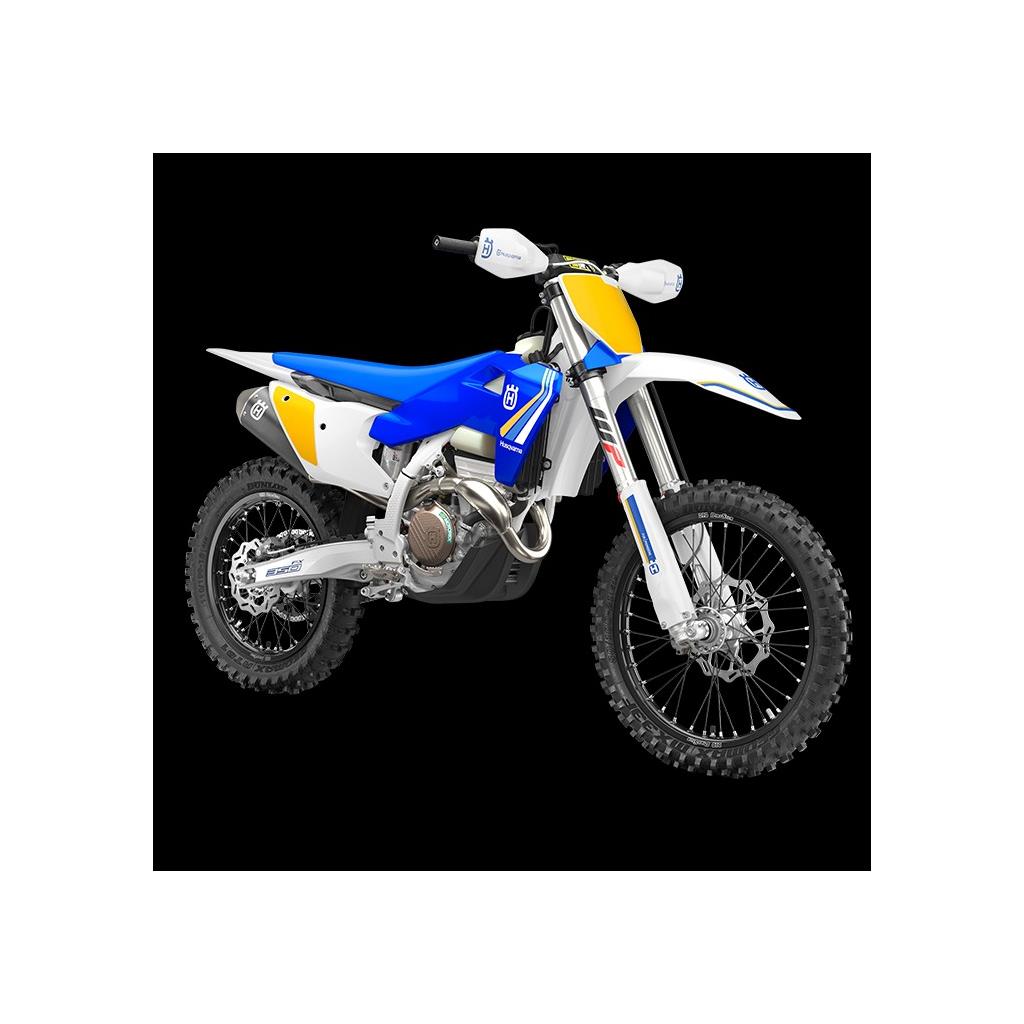

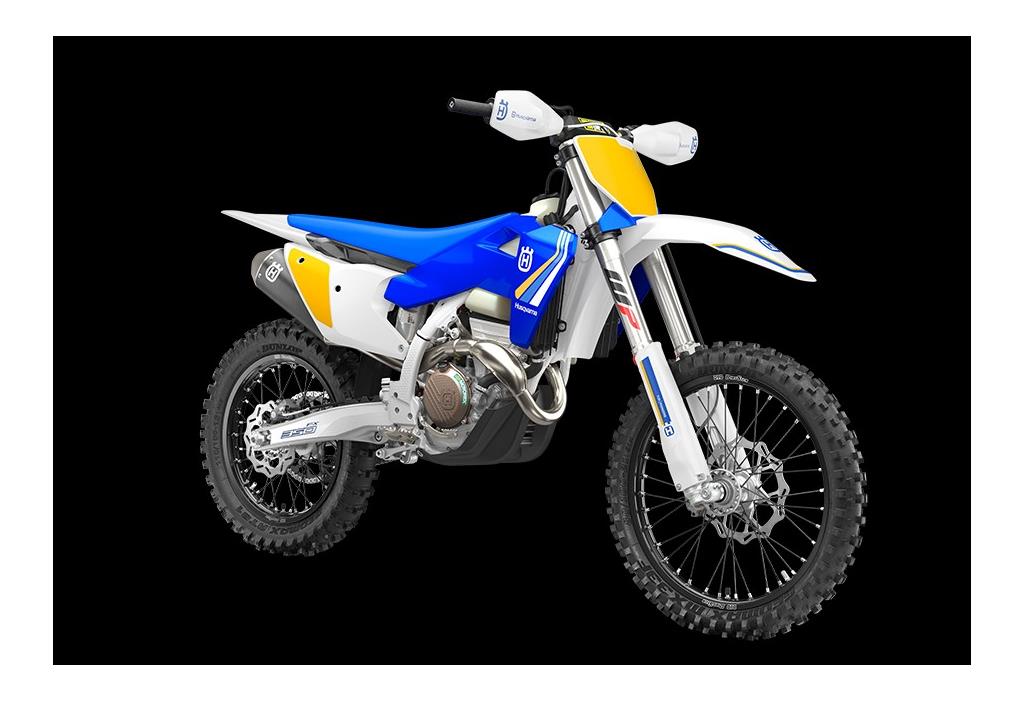

FX 350 Heritage

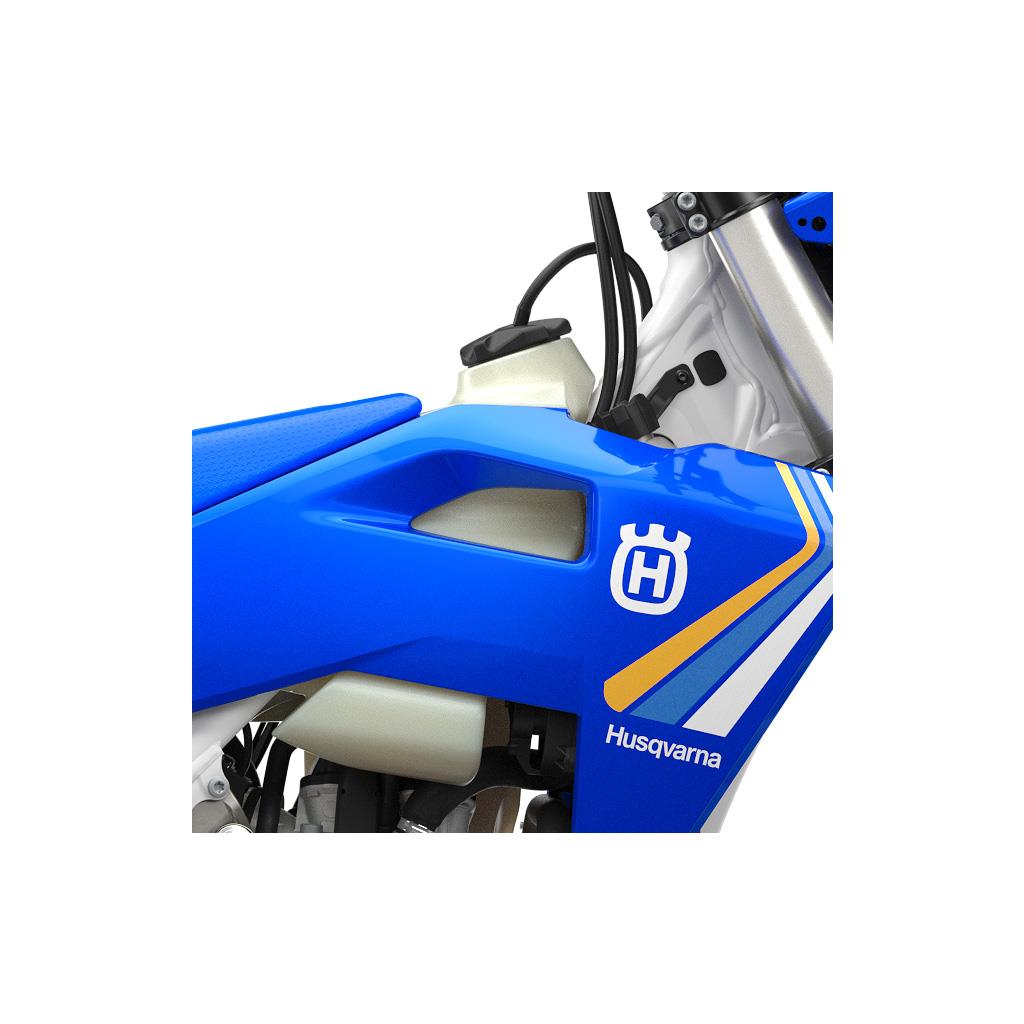

Continuing to offer the agility of a 250 with a peak power to rival a 450, the Heritage FX 350 delivers the perfect blend of rideability and proven performance. A new 6-speed gearbox with ratios designed for cross country racing, together with a specific engine map engaged in each gear, ensures every rider will benefit from a controllable power delivery at all speeds. Together with a new frame and updated suspension settings, an unrivalled riding experience is guaranteed. With the addition of a slightly taller and wider seat and ergonomic bodywork, including revised radiator shrouds, movement on the FX 350 remains effortless. New, Swedish-inspired graphics, applied using in-mold technology, provide a distinctive and long-last look.

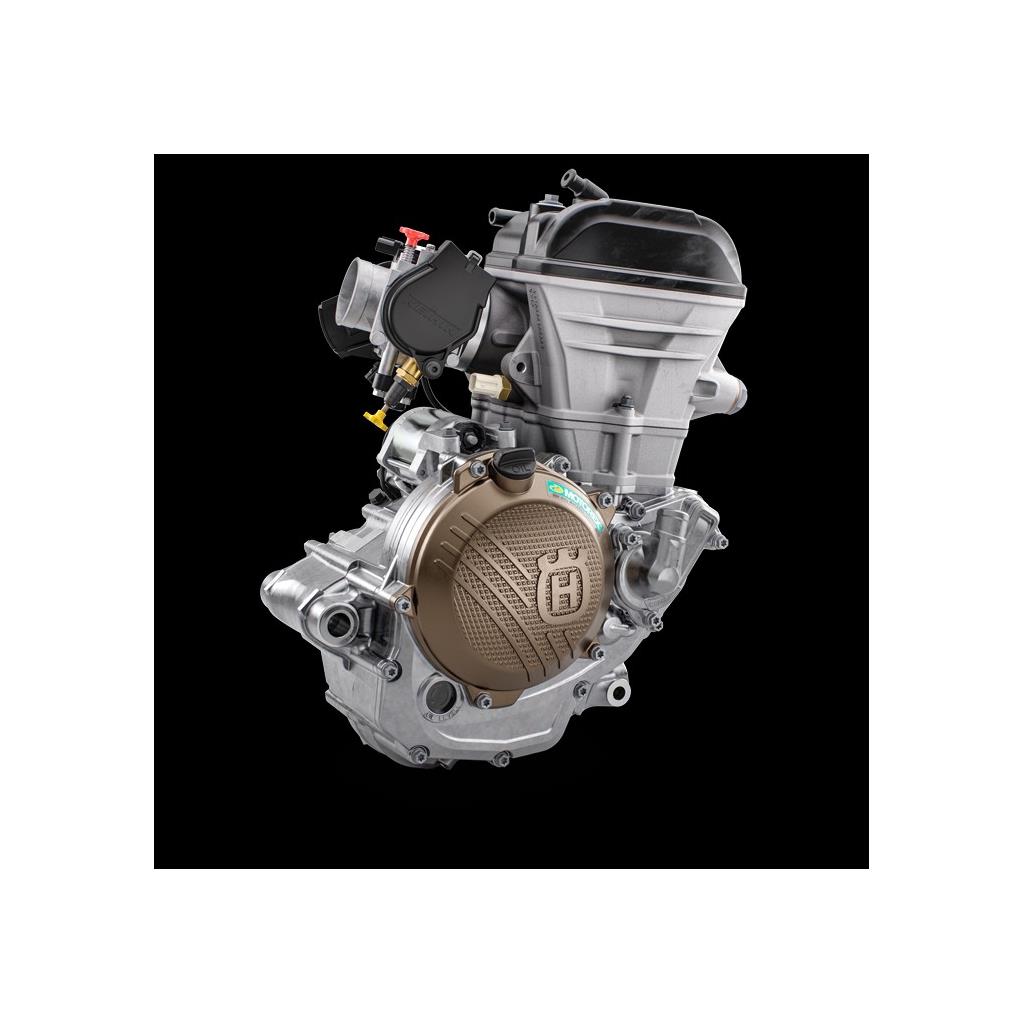

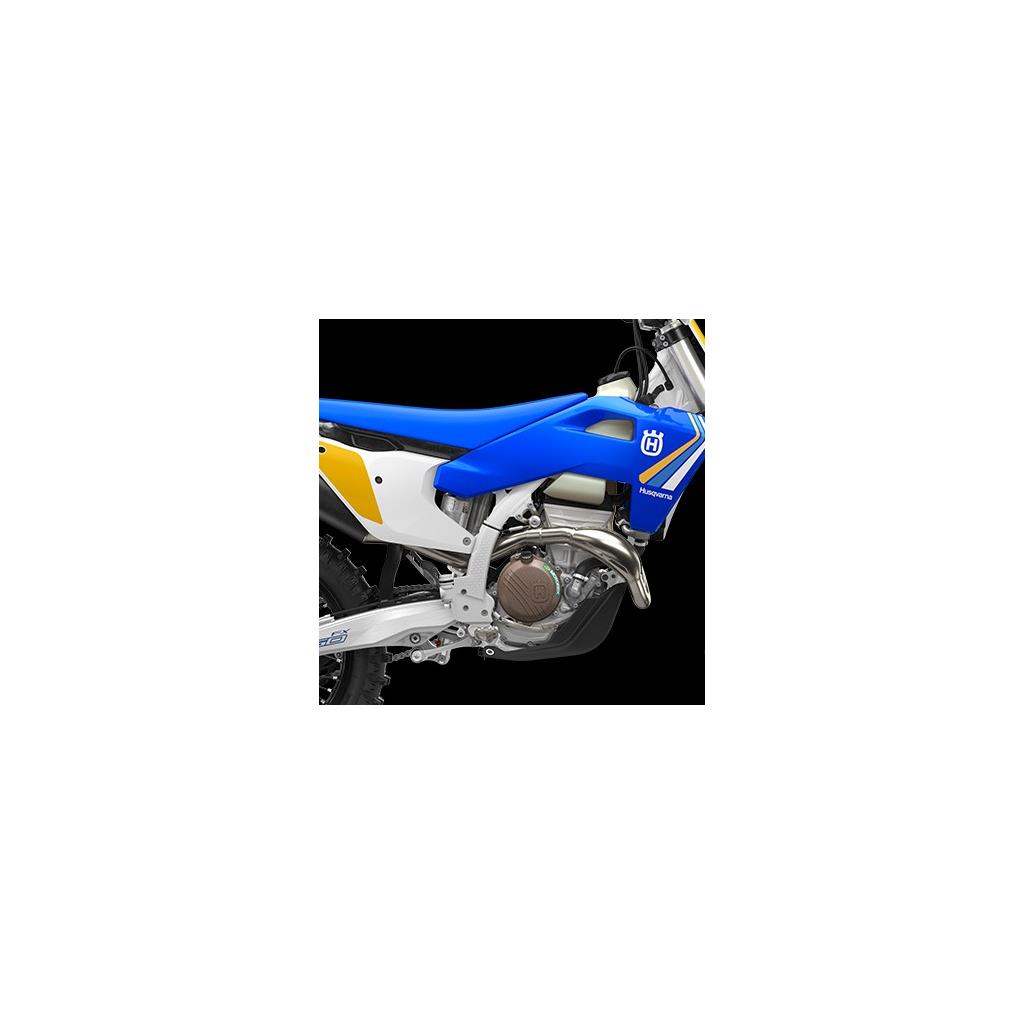

Engine

The engine is designed to deliver maximum performance with all major engine components and shaft arrangements positioned to enhance overall handling. Weighing just 27.2 kg, the 350 cc 4-stroke engine centralises mass and aids the anti-squat behaviour of the whole chassis.

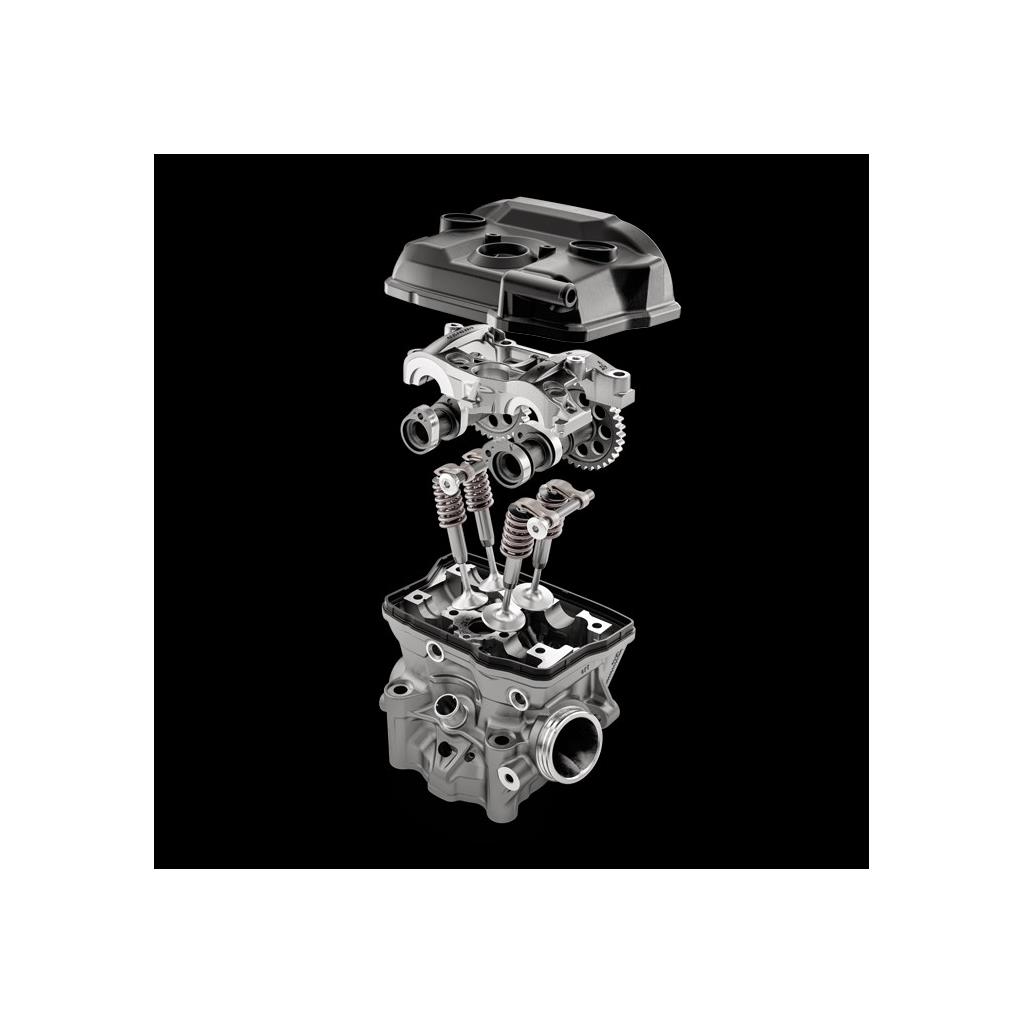

Cylinder head

The DOHC cylinder head offers improved durability and serviceability, with diamond-like carbon (DLC) coated finger followers that guarantee minimal friction and optimal performance. These actuate large titanium valves, 36.3 mm for the intake and 29.1 mm for the exhaust, which optimise gas flow for strong, usable power across the rev-range, all the way up to the 13,400 rpm limit. Valve timings work in perfect harmony with the camshaft, which features a bearing bridge design for stiffness and easy serviceability.

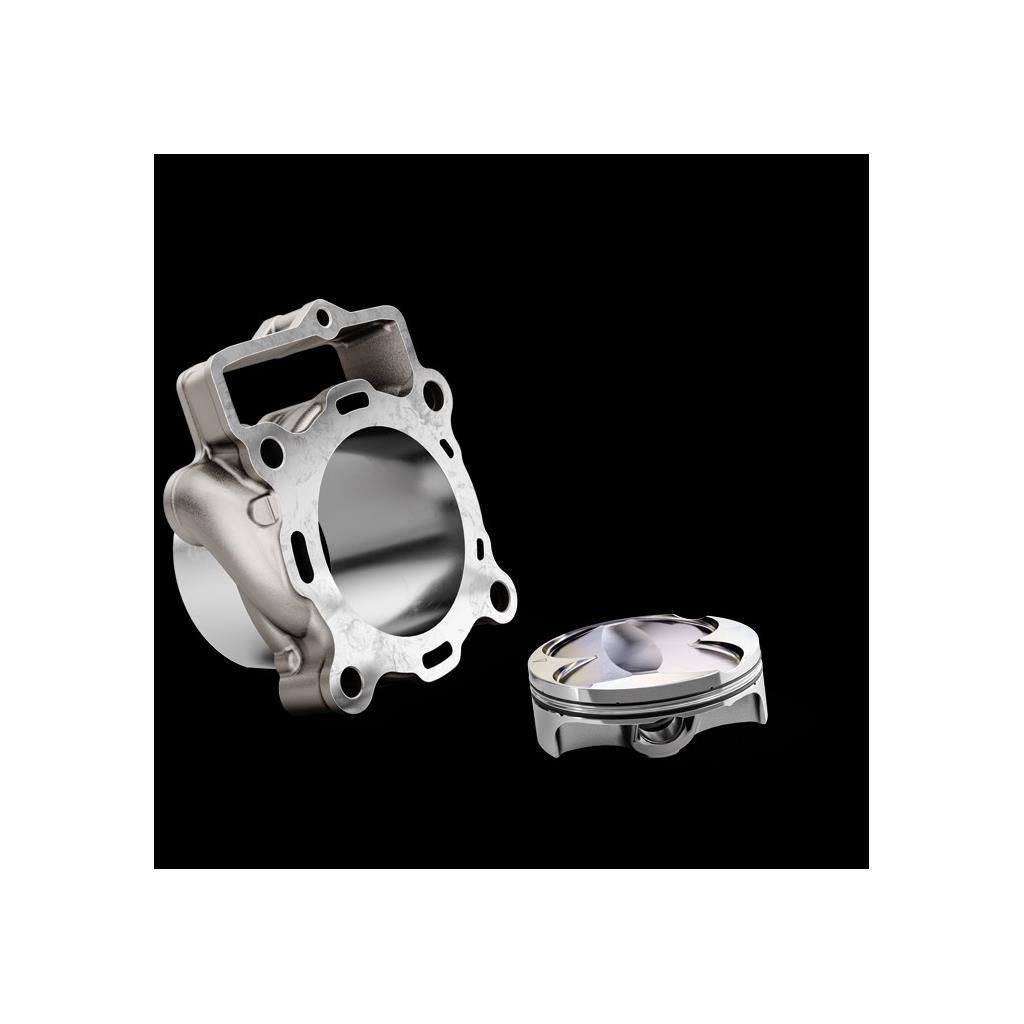

Cylinder and piston

A large 88 mm bore and 57.5 mm stroke cylinder is professionally engineered from high-strength aluminium for maximum reliability, and houses the high performance forged bridged-box-type piston from CP. The compression ratio is 14.6:1 for exceptional torque and peak power. Engine response is strong thanks to optimised valve guides and valve shaft diameters that are precisely engineered using computational fluid dynamics (CFD).

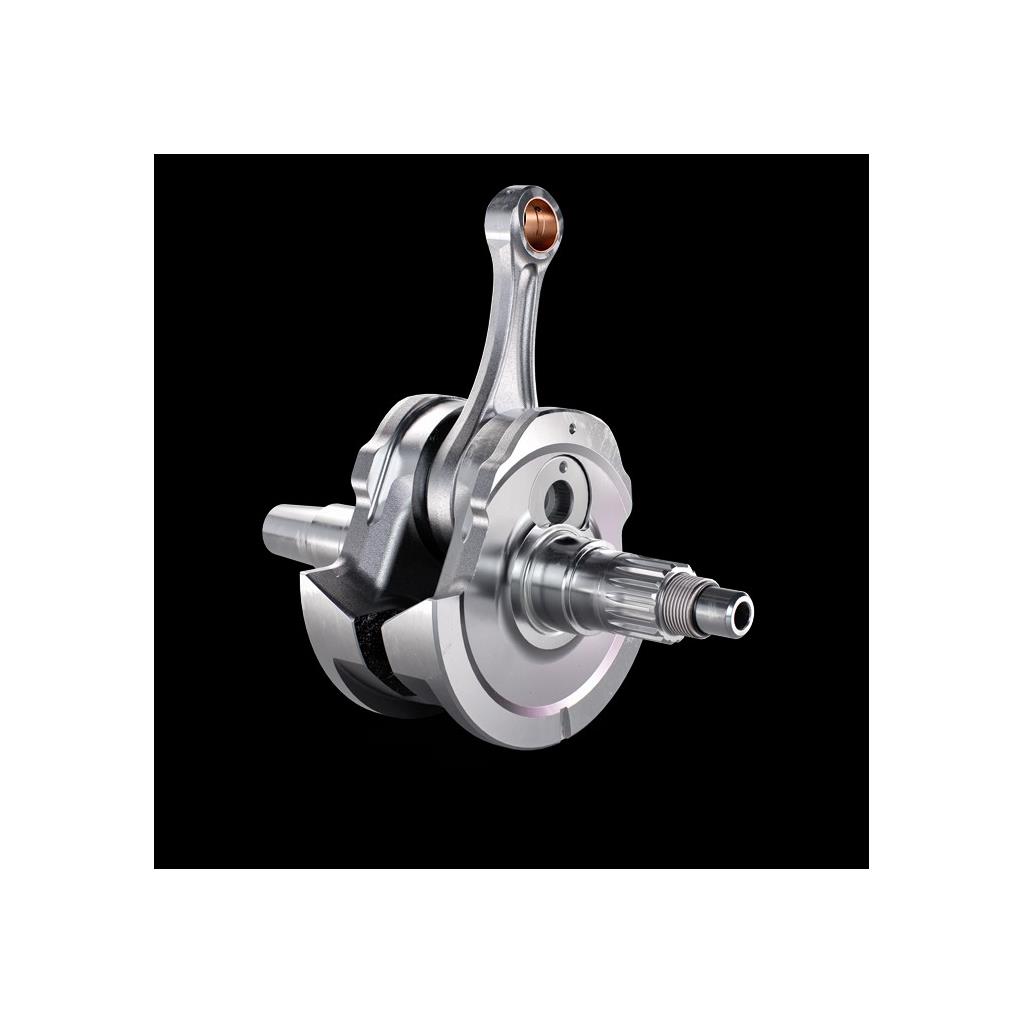

Crankshaft

At the centre of the high-output, high-revving engine is a crankshaft featuring a plain big end bearing rotating on two force-fitted bearing shells. Ensuring maximum reliability and durability, the crankshaft offers long service intervals of 90 hours.

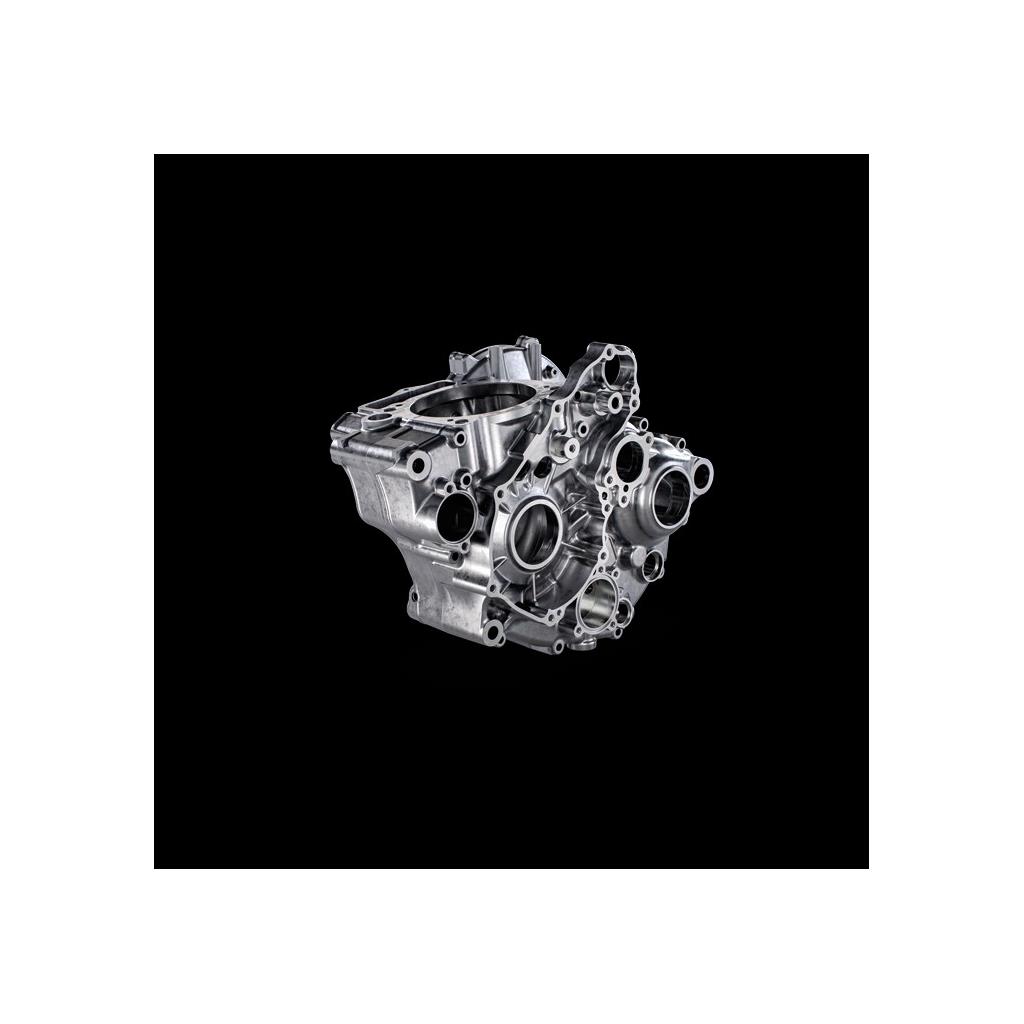

Crankcases

Designed for optimised mass centralisation, the crankcases house all internal components in the perfect position to achieve the ideal centre of gravity. Manufactured using a high-pressure die cast production process, the result is a thin, exceptionally strong wall thickness at the lowest possible weight.

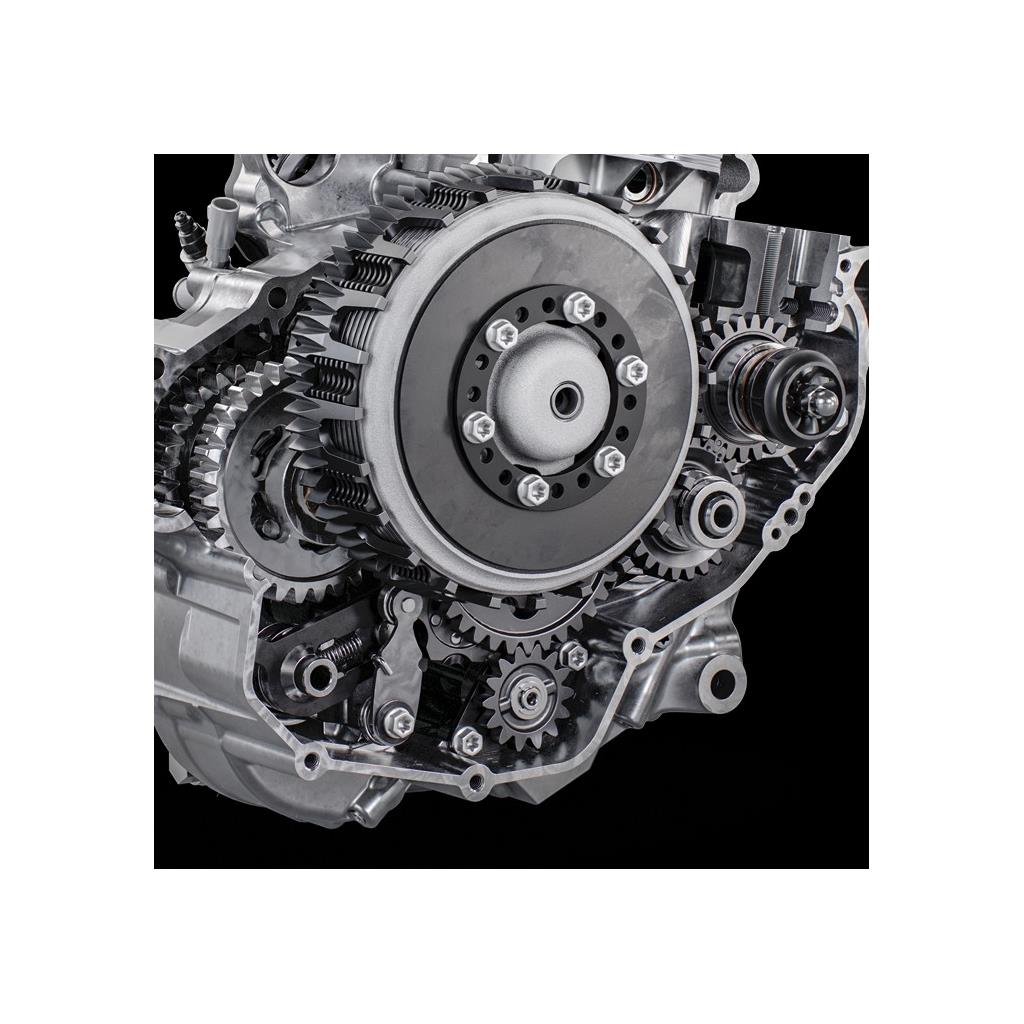

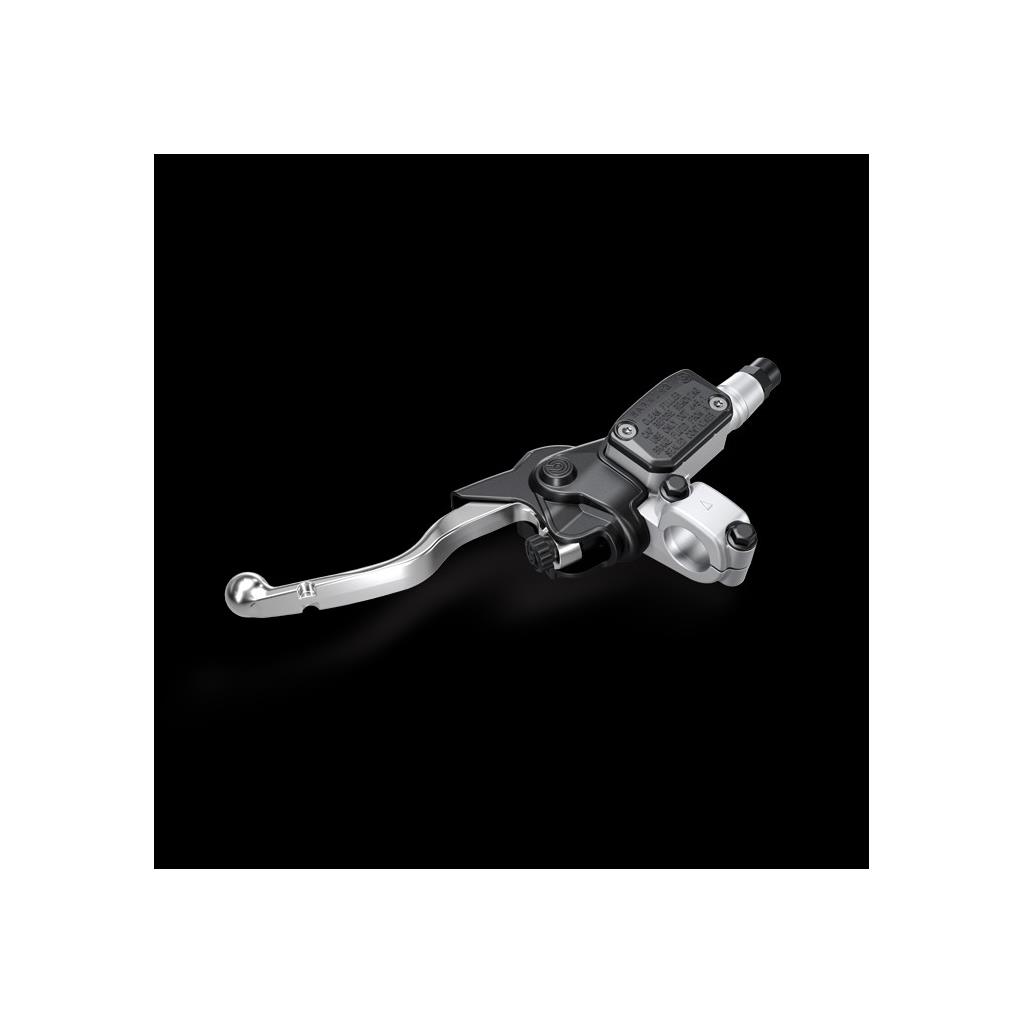

DS clutch

The FX 350 Heritage model features a durable diaphragm steel (DS) clutch. Engineered from a single piece of CNC-machined steel, the clutch basket uses thin steel plates, which contribute to the compact design of the engine.

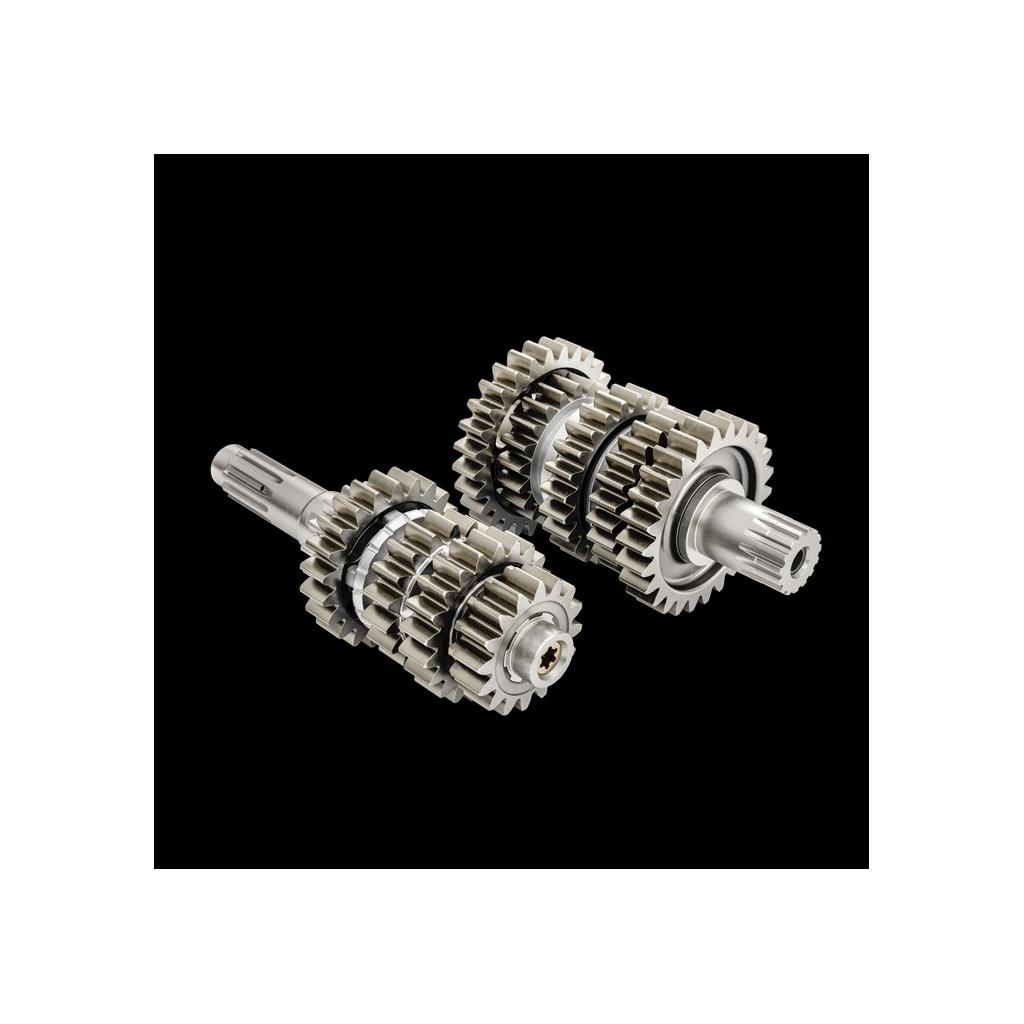

Gearbox

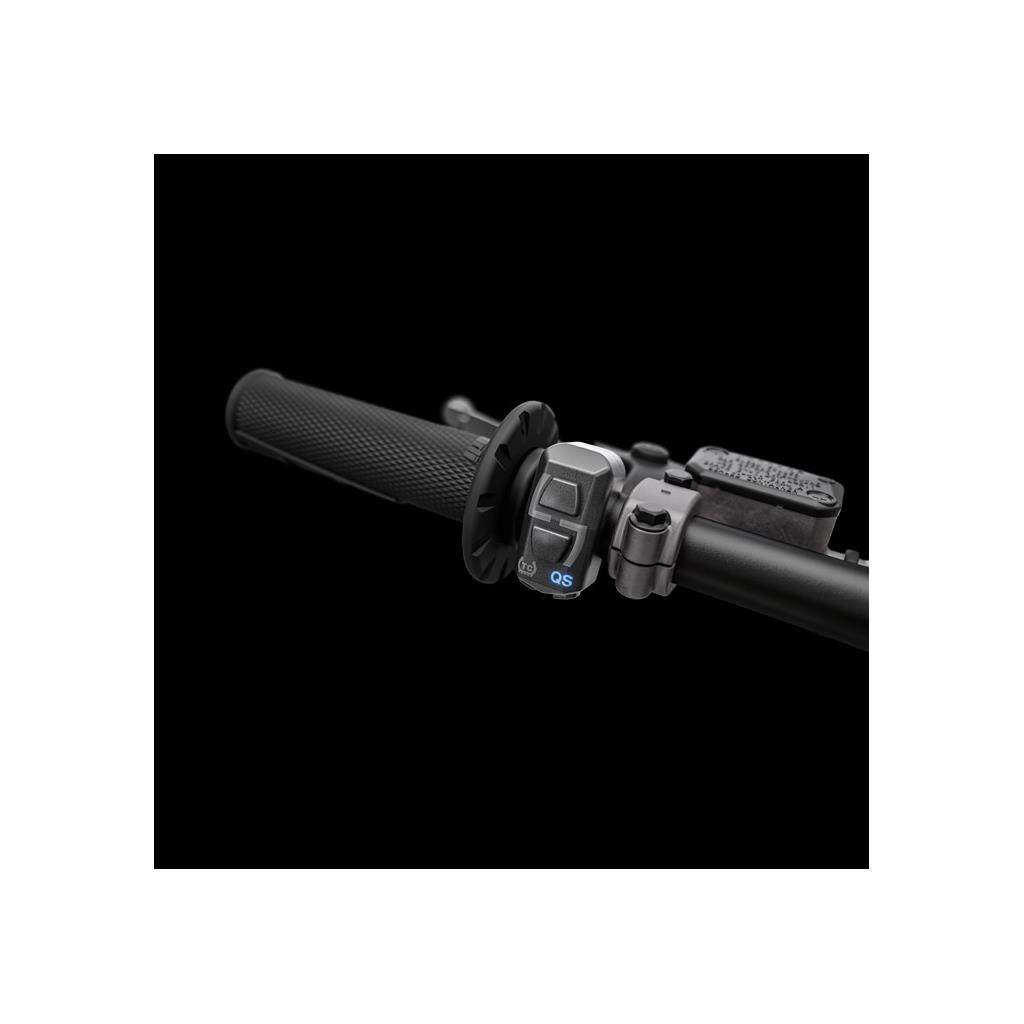

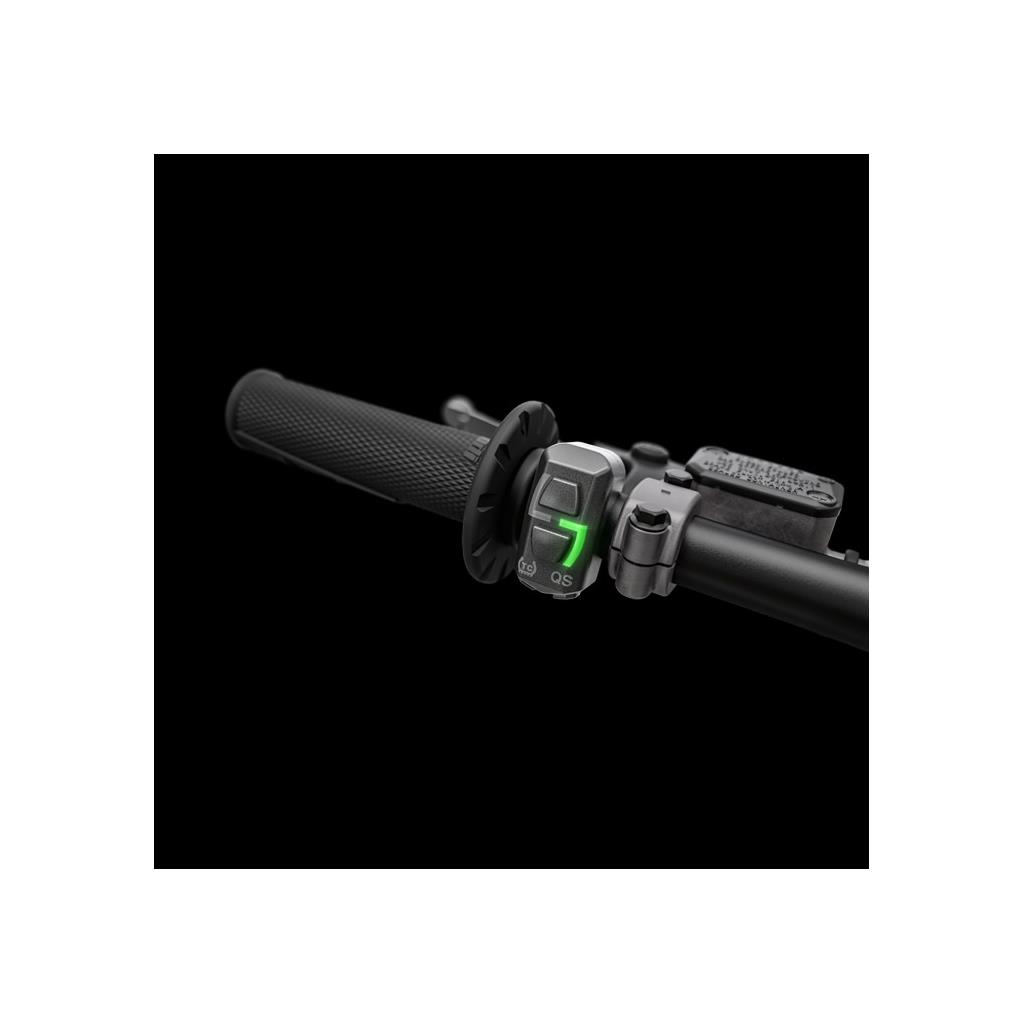

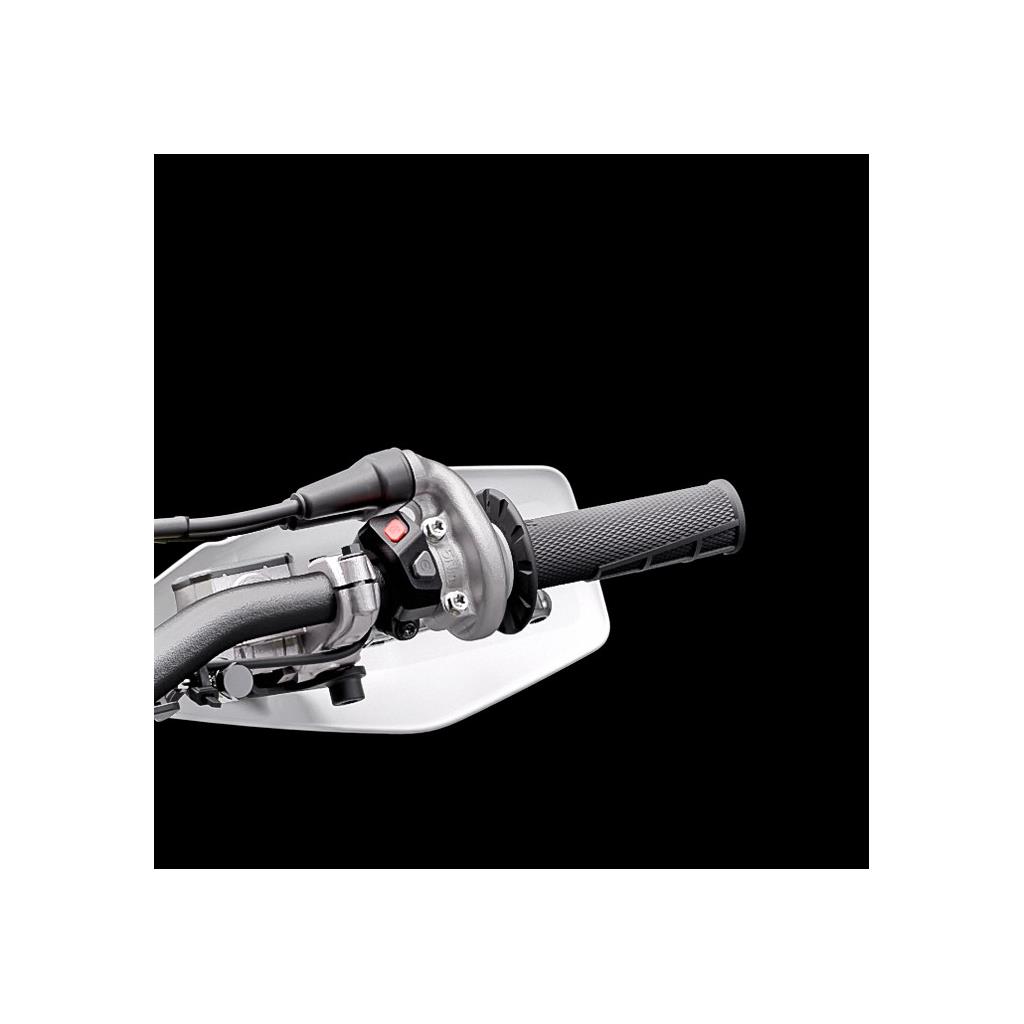

Produced by Pankl Racing Systems, the 6-speed gearbox is designed to be extremely light and durable while featuring optimised and proven motocross-specific gear ratios (24:72). Integrated into the shift drum, a Quickshifter sensor can be activated by pressing the QS marked button on the Map Select Switch to further aid smooth upshifting.

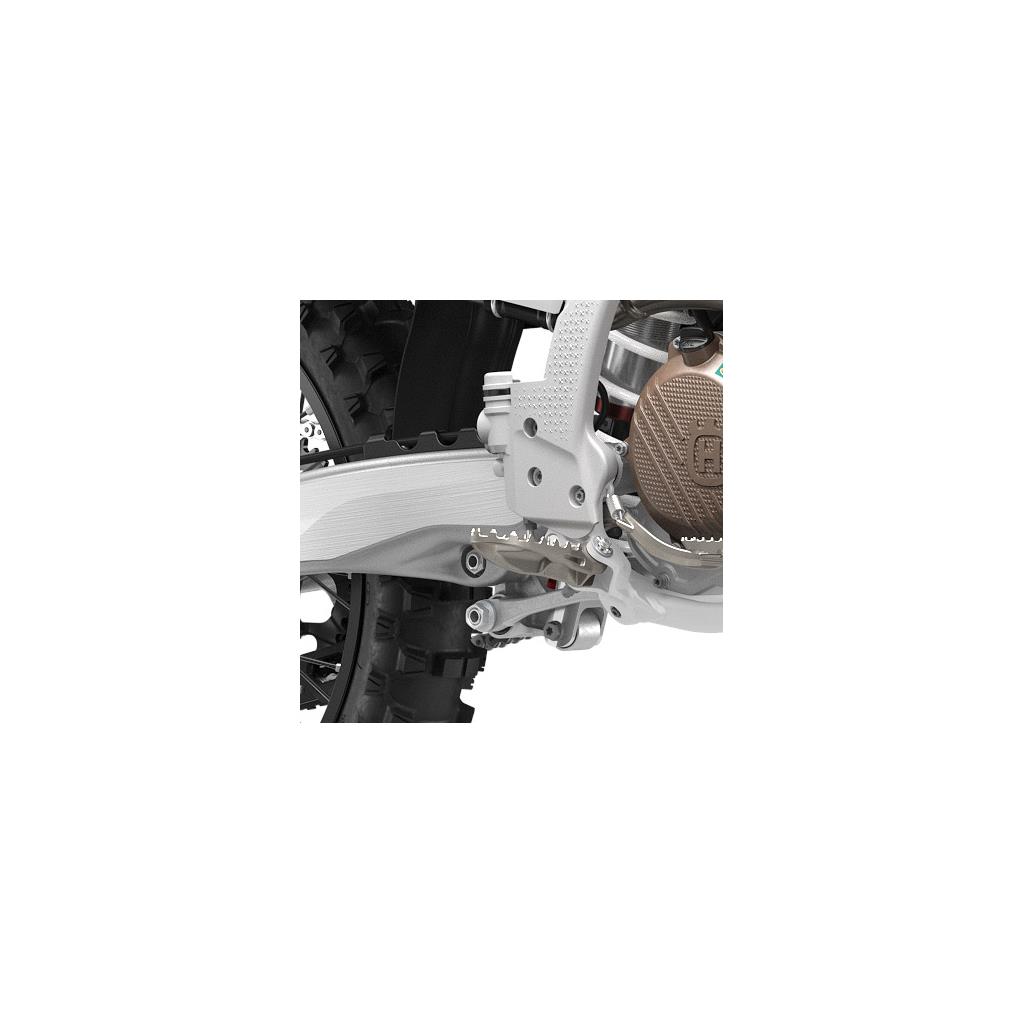

Frame

All Heritage models benefit from an advanced frame that is engineered with specific wall thicknesses in high stress areas for strength and a calculated level of flex. Overall, the chassis offers exceptional cornering agility, unparalleled rider feedback, energy absorption, and confidence-inspiring straight-line stability. The frame is finished with a premium white powder coating, unique to the Heritage models, with frame protectors offering superior protection, durability, and grip in any condition.

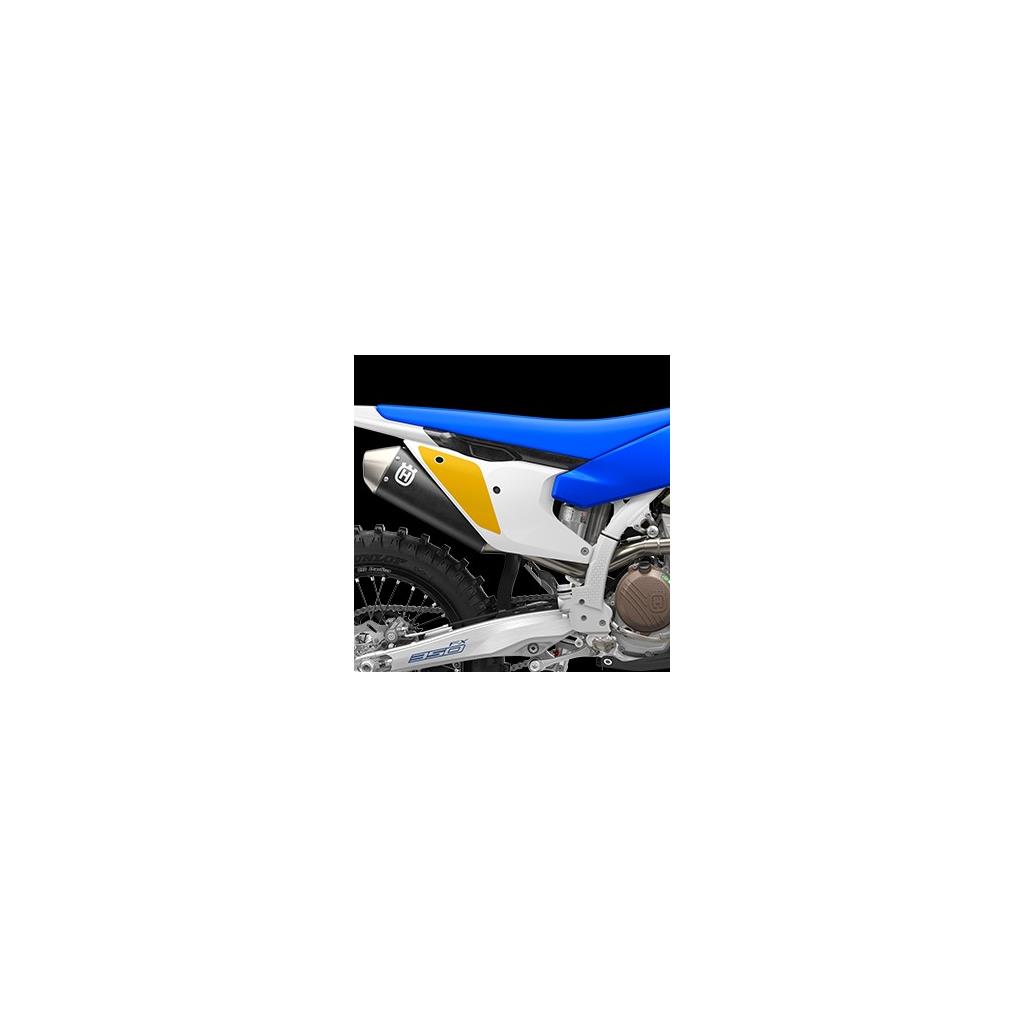

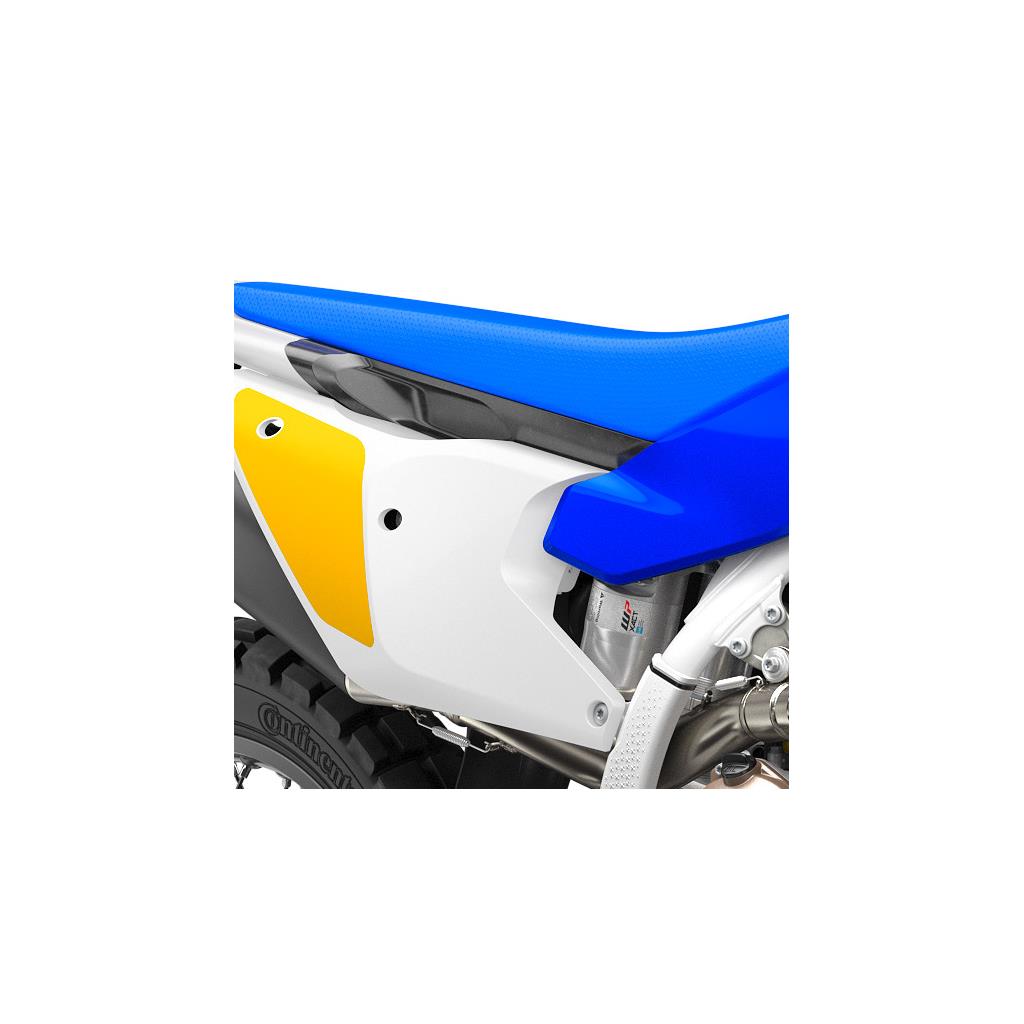

Polyamide-reinforced aluminium subframe

Made from 60% polyamide and 40% aluminium, the two-piece subframe ensures exceptional strength and durability at an overall weight of just 1.8 kg. The lower subframe spars and frame mounts are manufactured from cast aluminium for maximum reliability. The upper section of the subframe is made from injection-moulded polyamide to enable specific flex characteristics and ensure a lightweight construction.

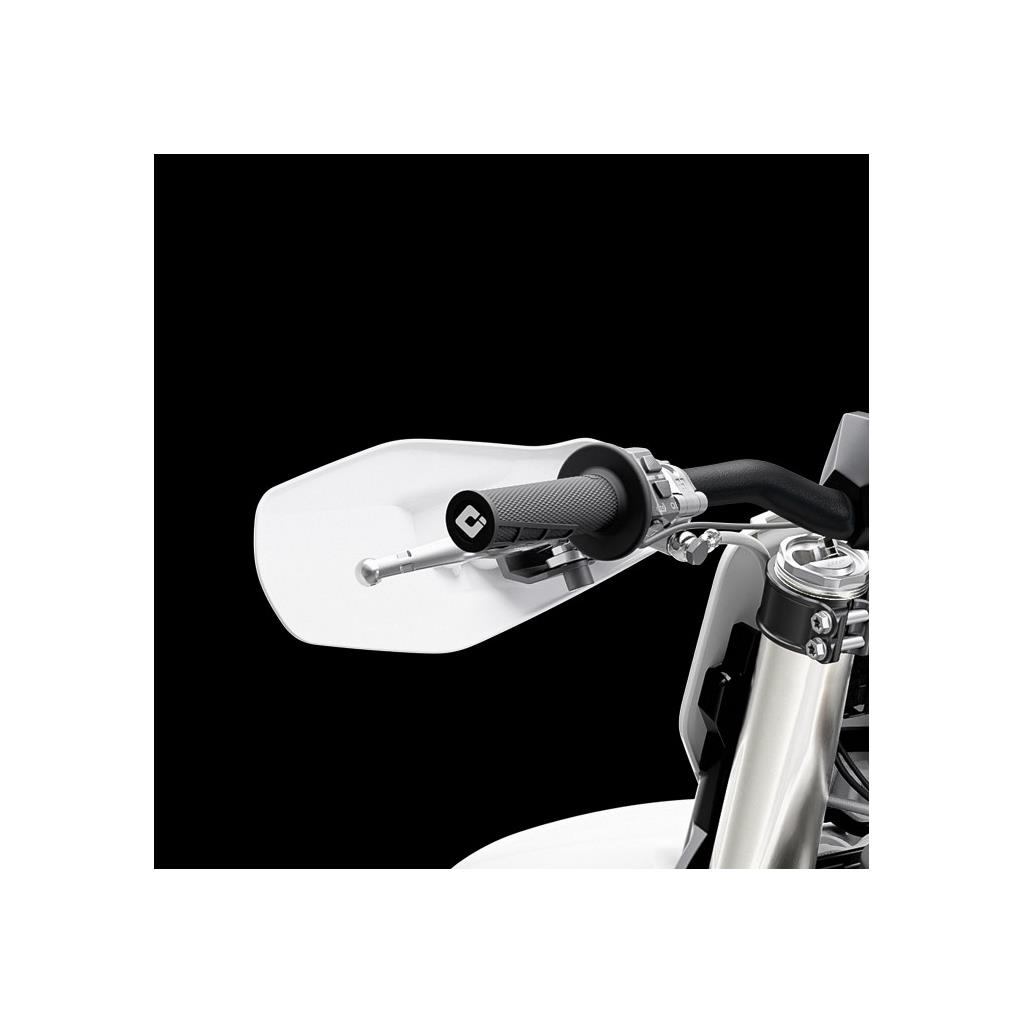

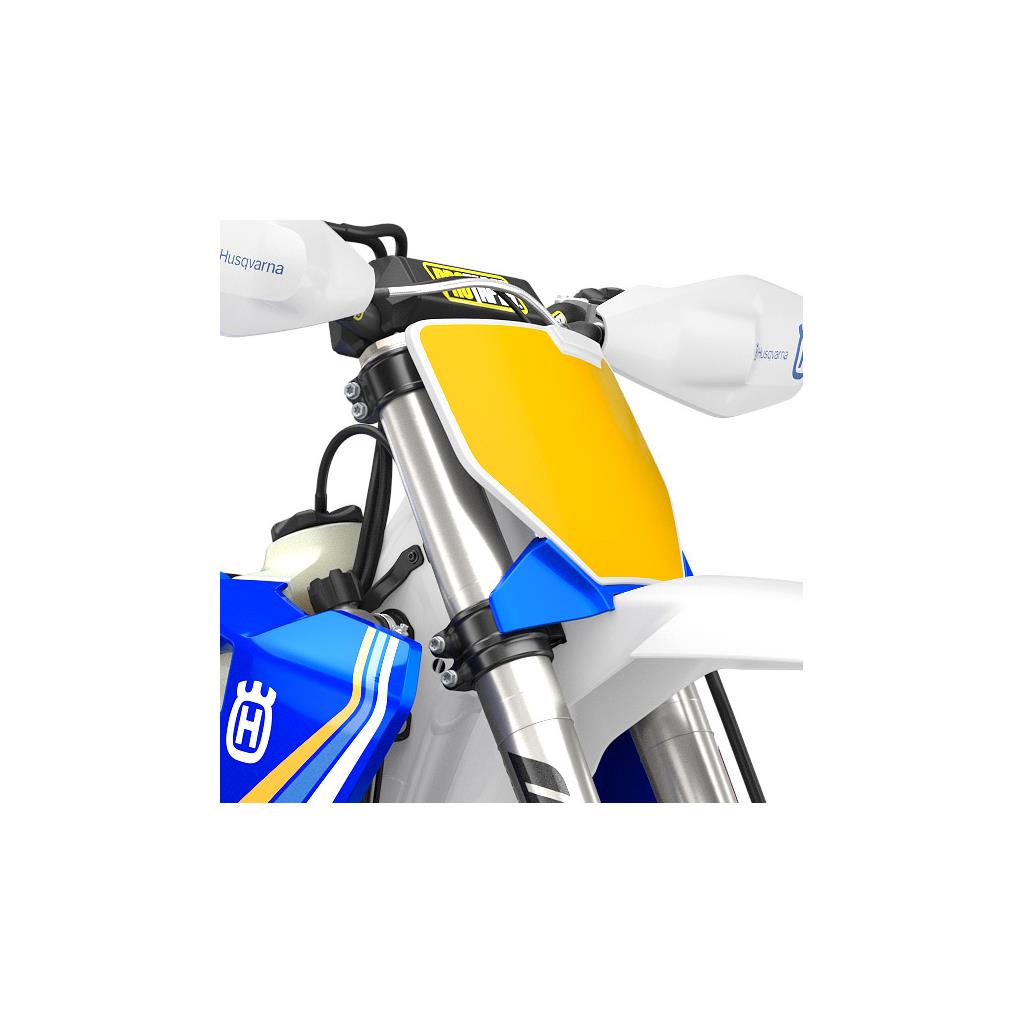

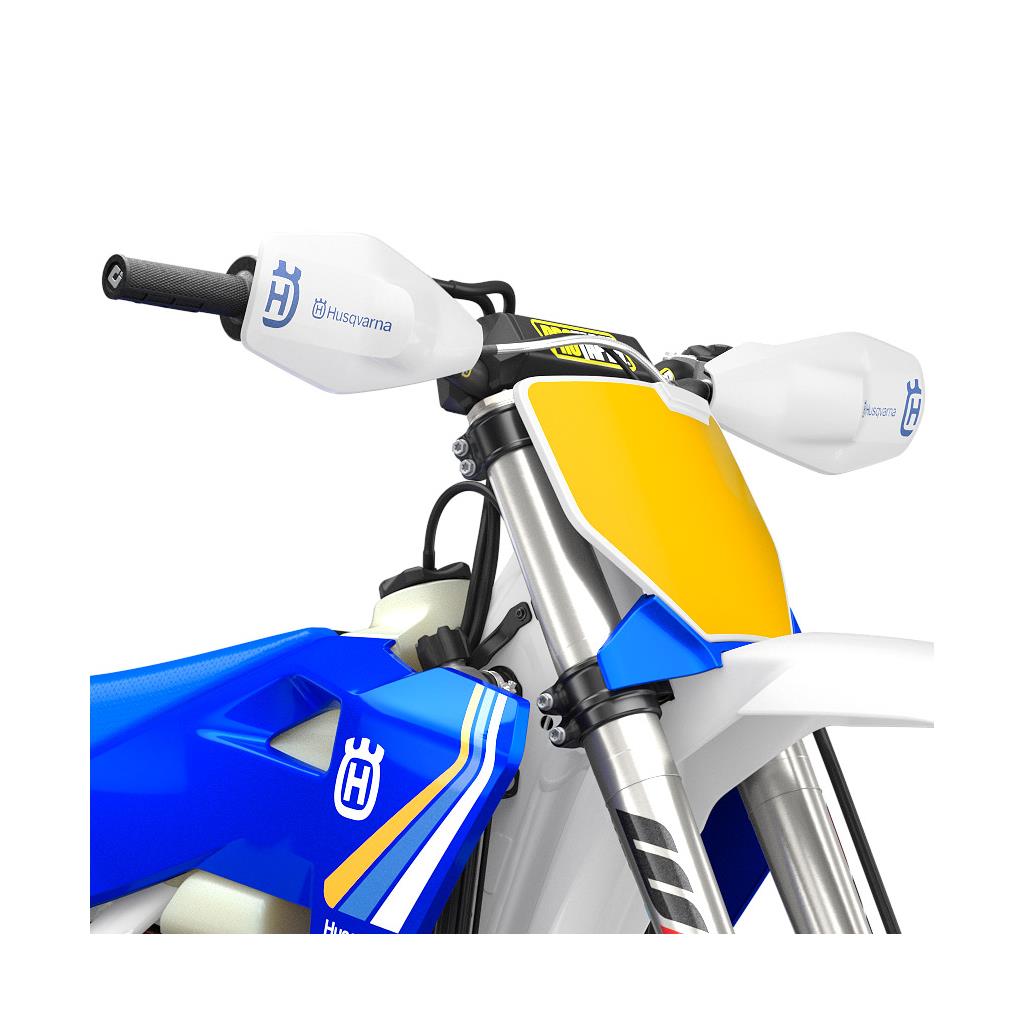

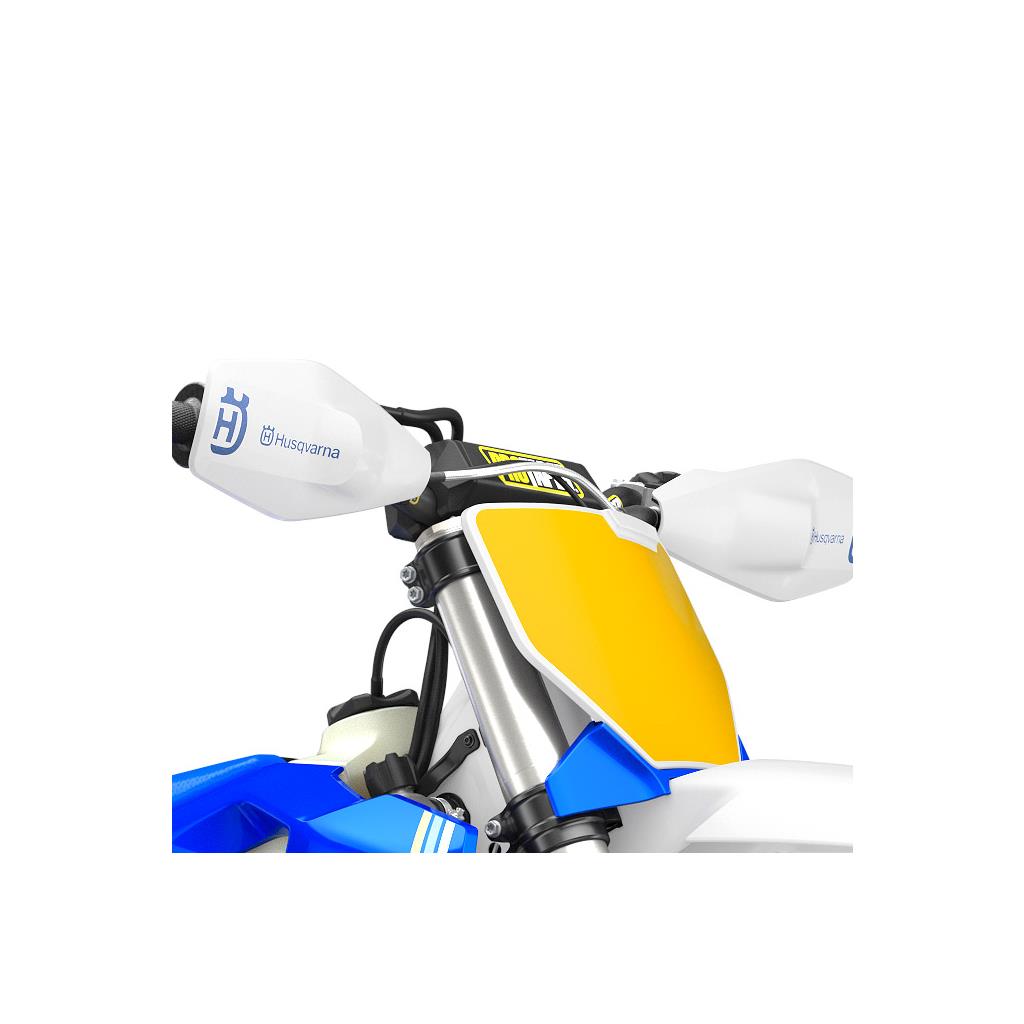

CNC machined triple clamps

Working in unison with the frame design and suspension set-up, the CNC-machined triple clamps ensure precisely calculated geometry for assured stability. Handlebar flex can be customised with the handlebar clamp, which offers two mounting options – rubber-damped for less vibration, or fixed for enhanced front-end feedback. The upper triple clamp is stiffer to ensure a smoother fork action and plays a vital role in the perfect alignment of the front wheel for superior handling.

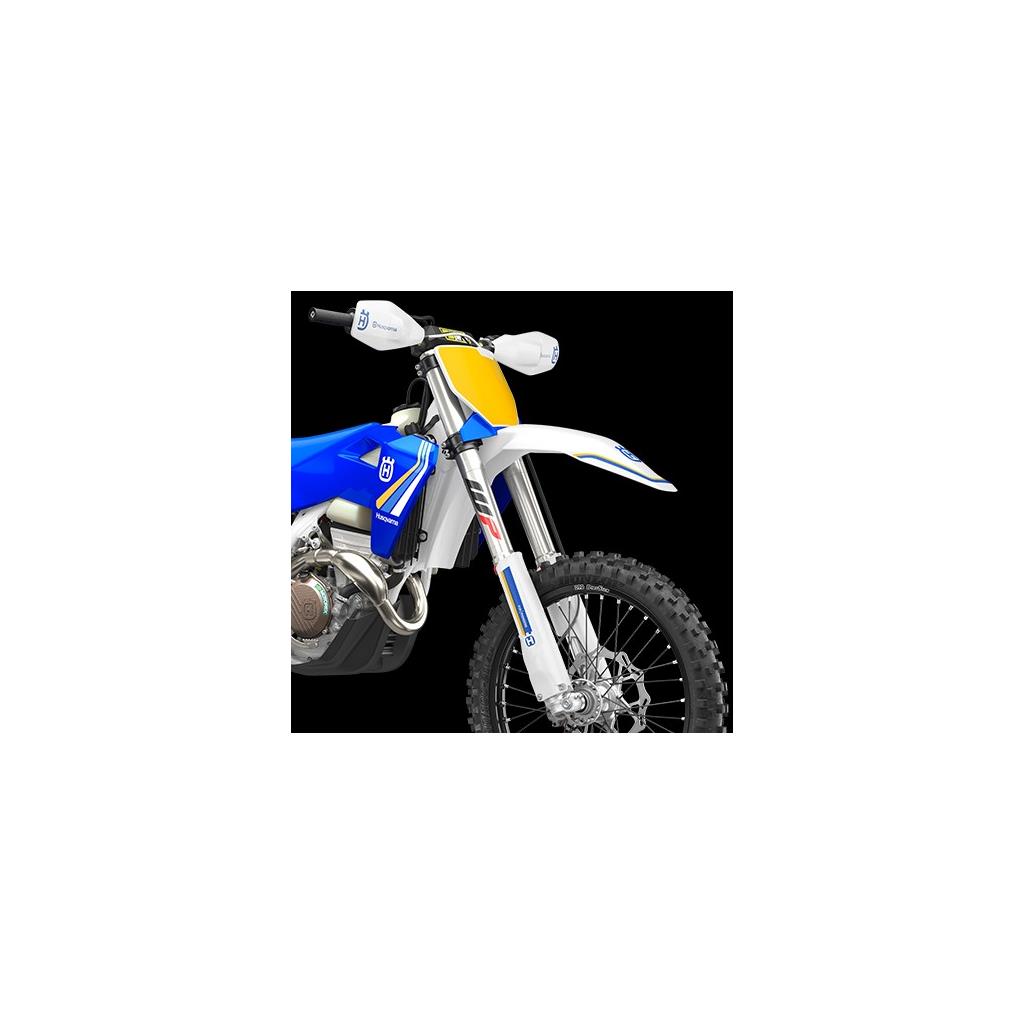

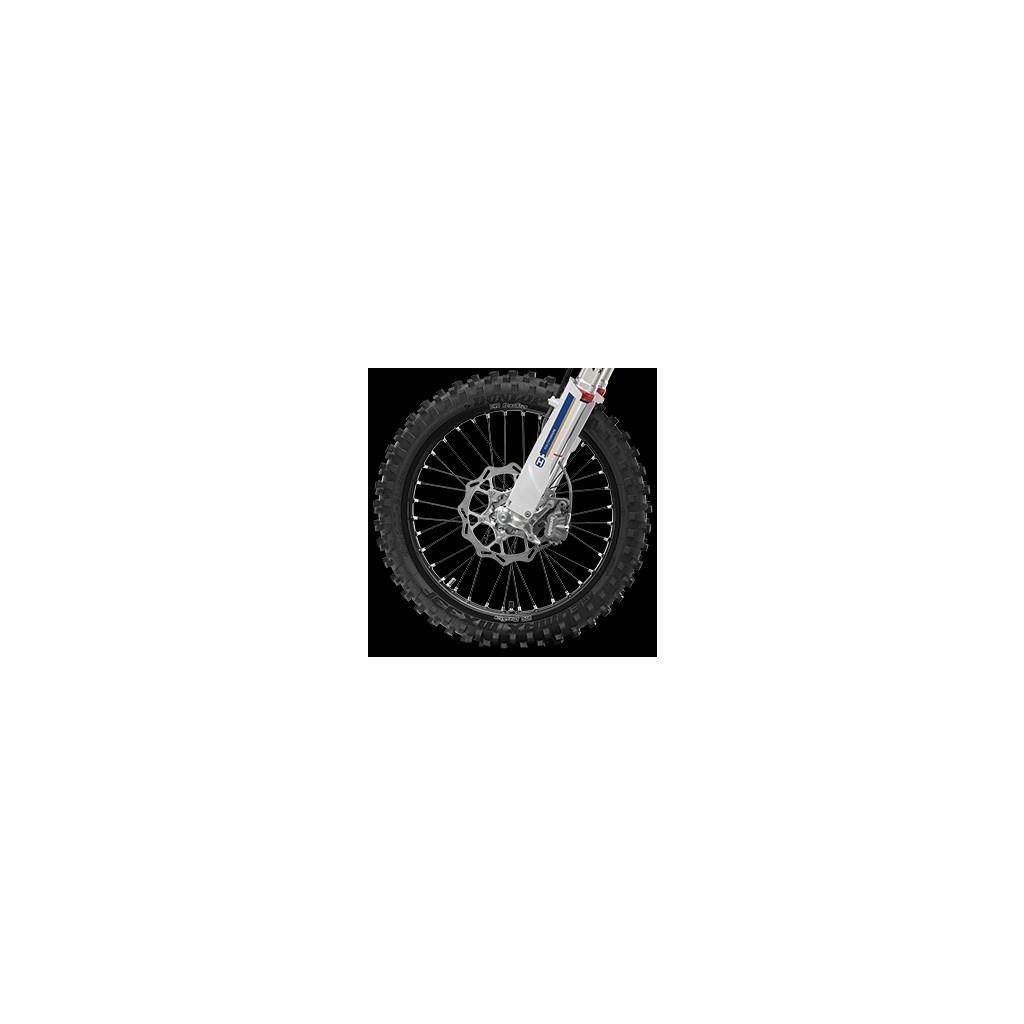

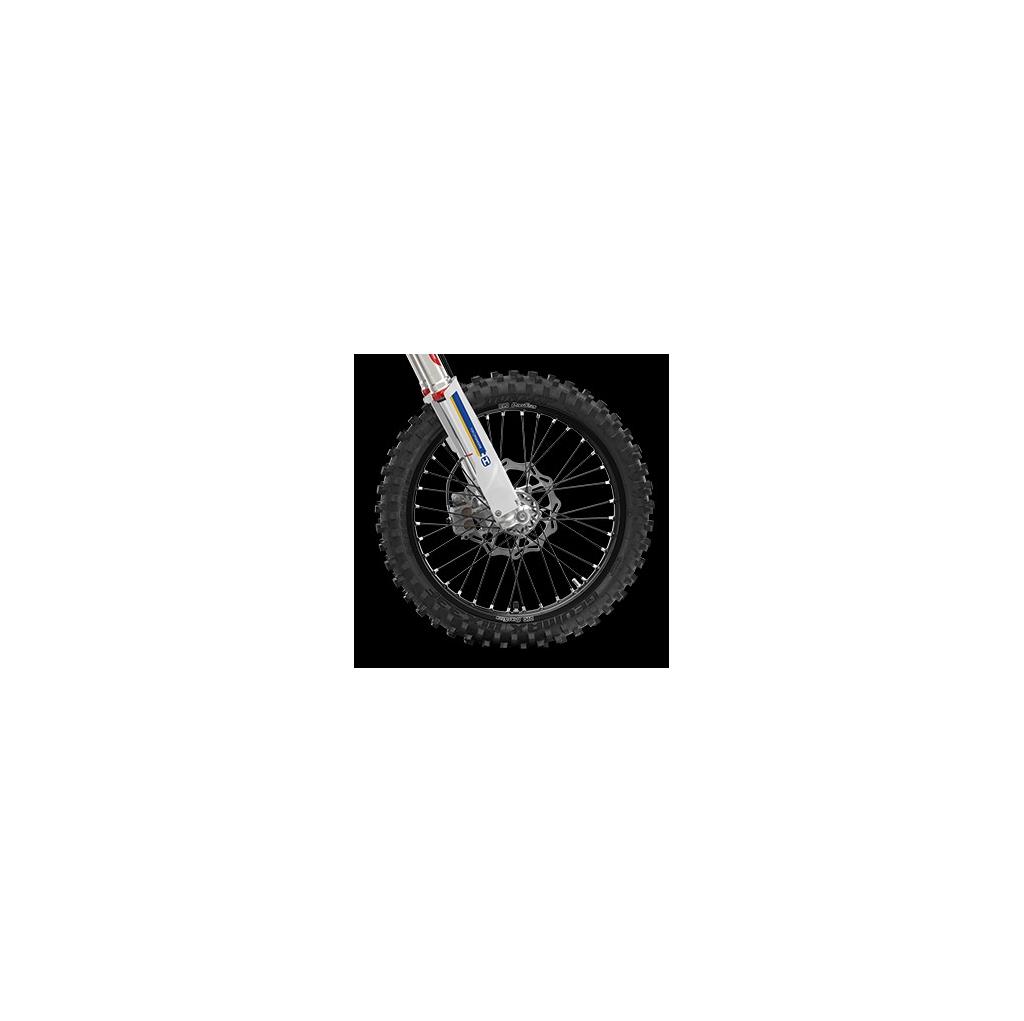

WP XACT front suspension

Rigorously tested by WP’s research and development department, the 48 mm WP XACT closed cartridge spring forks fitted to the TX 300 Heritage model provide exceptional comfort. Inside the forks, mid-valve pistons optimise oil flow and prevent foaming for consistent and predictable damping at all times. A hydrostop, active in the final 68 mm of travel, reduces the impact of harsh and high-speed landings for continued straight line stability and forward momentum. Both the compression and rebound settings can be quickly adjusted by hand using the easy access clickers. Additionally, the pump needed to adjust the air spring pressure in the forks is provided with each Heritage machine.
